Навъи-Т

Full-area safety and security, integrated demonstrator, charging versatility

1250 * * 600 1070mm

Андозаи бадан
± 0.3mm

Combined Accuracy
SLAM&QR CODE

Navigation Methods
100kg Max

Platform Loads

Ҳоло тафтиш кунед

Хусусиятҳои маҳсулот
Мушаххасоти
Сенарияи истифода
Маҳсулотҳои иловагӣ
пурсиш

Хусусиятҳои маҳсулот

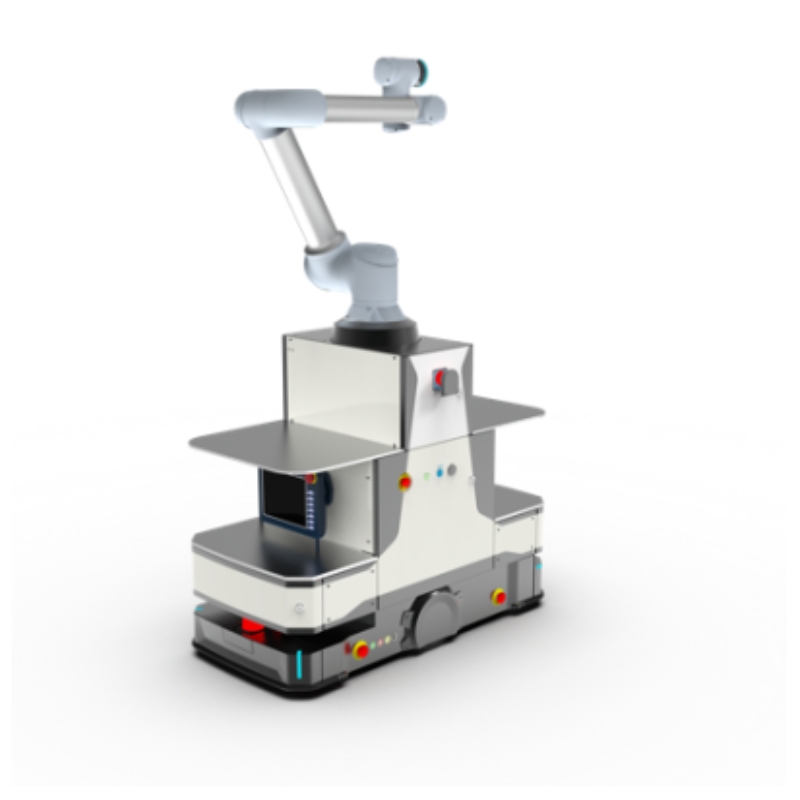

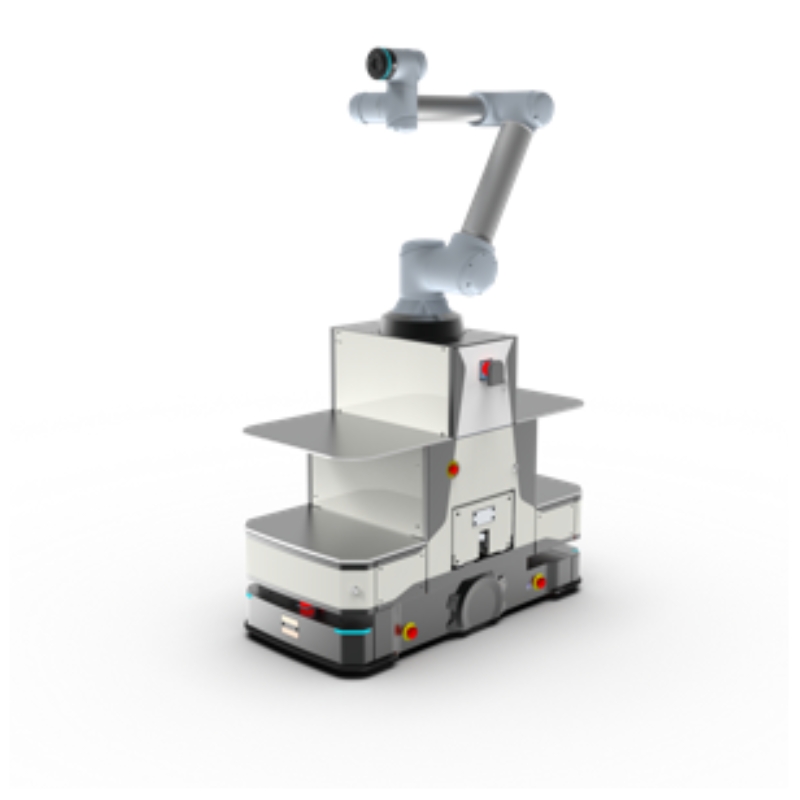

The DUCO T composite robot integrates independently developed mobile platforms and collaborative robots. It can be equipped with autonomously developed vision systems, fixtures, and other execution units to achieve functions such as material handling, assembly, inspection, and precision machining. The DUCO T composite robot offers comprehensive safety protection, multiple interaction and communication methods, and seamless integration with customer systems. It also provides customized solutions, customized scheduling systems, on-site guidance, and comprehensive after-sales services to ensure a satisfactory customer experience. As a standardized product, the DUCO T composite robot possesses consistency, reliability, and stability that non-standard equipment lacks.

Мушаххасоти

	HC-X2-T
Dimension(LWH, excluding cooperation arm and side obstacle avoidance laser)	Х х 1250 600 1070 мм
Дақиқии ҳамаҷониба	± 0.3mm
Вазни умумии вазн	Approximately 330 / 361/ 350/ 360 kg (Equipped with a collaborative arm GCR10/14/16/20.)
Navigation Mode	SLAM & QR CODE
Cobot Payload	10kg / 14kg / 20 kg (Equipped with a collaborative arm GCR10/14/16/20.)
Platform Load	100 kg Max
Қобилияти мобилӣ	Шакли ронандагӣ	Dual-wheel differential
	Табдил Радиус	500 mm Min
	Crab Speed (Any angle)	/
	Width of walking Passage	900мм мин
	Суръати ҳаракат	≤1м/с
	Суръати гардиш	≤0.5m / s
	Obstacle Clearance Height	10mm
	Trench Width	30mm
	Поксозии замин	30mm
	Баҳодиҳӣ	<5%
Parking Accuracy	± 5mm Position accuracy，± 1°Angle precision
Фаъолияти батарея	батарея	DC51.2V Lithium iron phosphate	DC51.2V Lithium iron phosphate（Optional）
	имконият	52Ah	80 Аҳ
	Вақти амал	Тақрибан 5.5 соат	Тақрибан 8 соат
	Нархгузории вақт	≤1.8 h	≤2 h
Ҳолати барқгирӣ	Contact charging/wireless charging/battery swapping (all three methods support manual or automatic)
Дастгоҳи бехатарӣ	Collision detection/safety touch edge/obstacle avoidance laser/emergency stop, etc.
интерфейс	Hardware supports CAN bus, RS-485, RS-232, RJ45, USB
интерфейс	Communication protocols support CANOPEN, Modbus, etc.
тугма	Start button / Pause button / Reset button / Teach button
Use Environment	Environmental temperature: -10°C-45°C
	Environmental humidity: 5% - 95% (no condensation)
	Operating environment: for indoor use only.
	Cleanliness level: None/Class 6 (thousand-level)/Class 5 (hundred-level)
