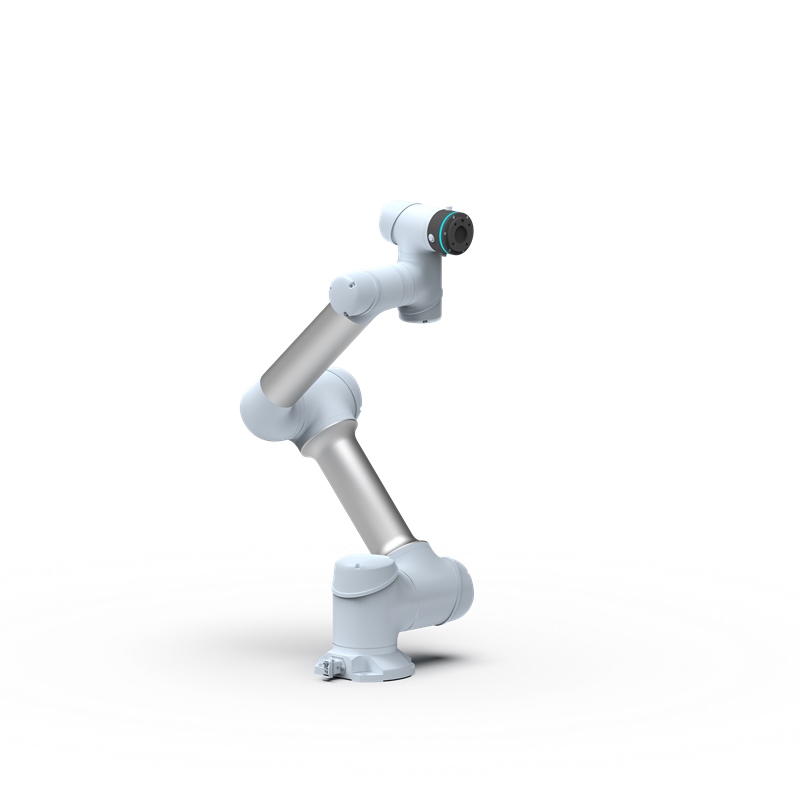

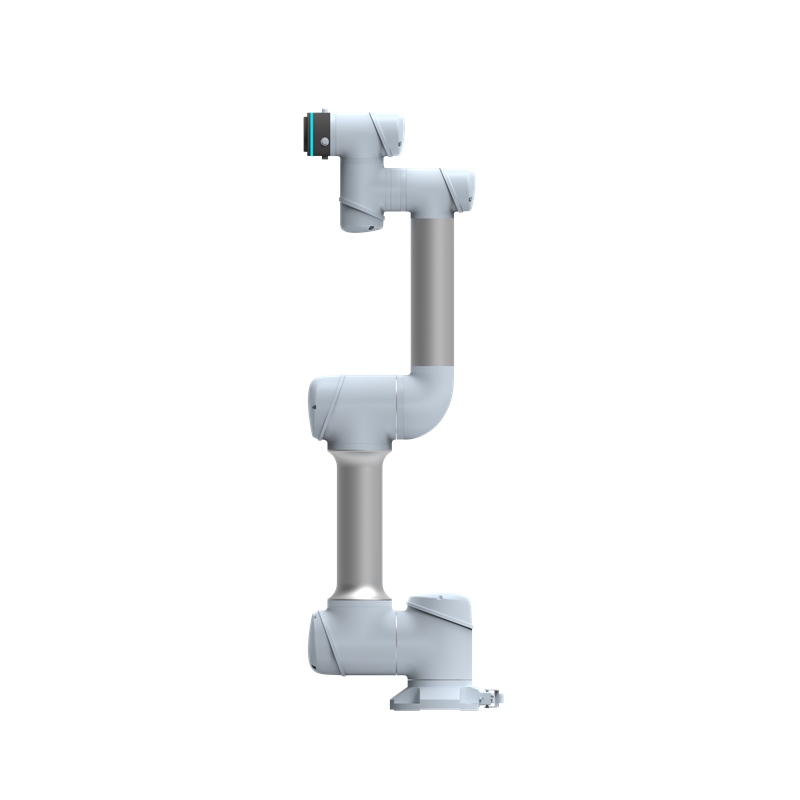

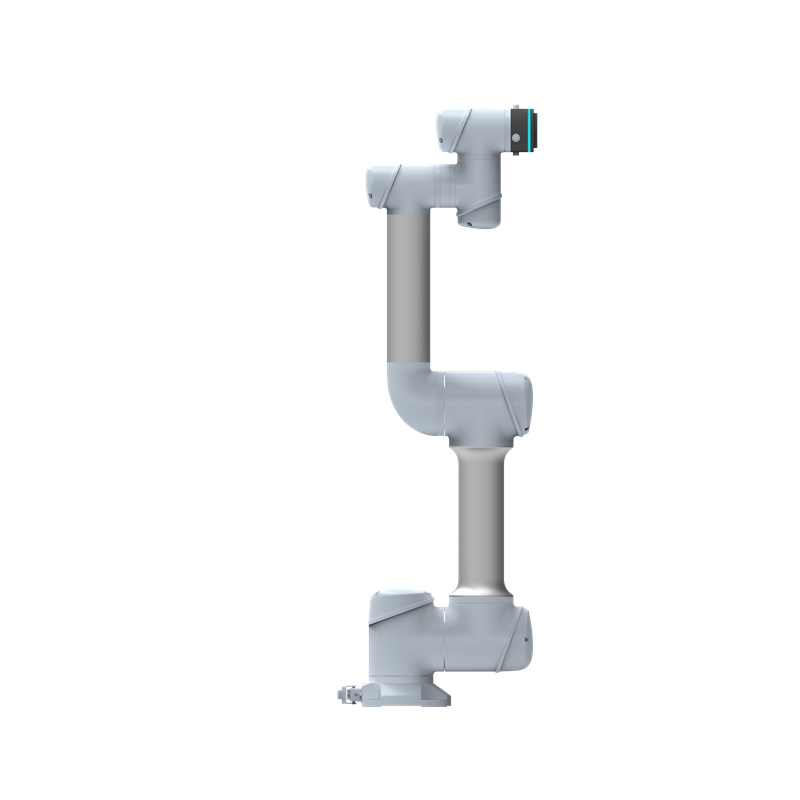

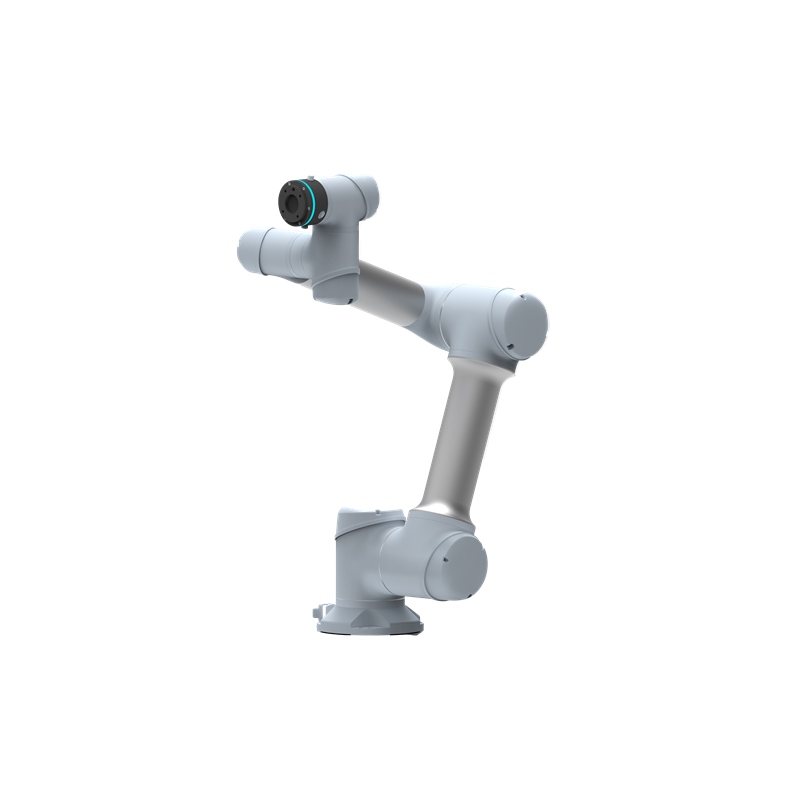

Max Payload 5 KG | Reach 917 mm
Радиуси кории самаранок
Максимум сарборӣ
Суръати максималӣ дар охир
Дақиқии ҷойгиршавии такрорӣ
Max Payload 5 KG | Reach 917 mm
A cost-effective new generation of versatile collaborative robots, featuring lightweight design, quick deployment, easy operation, safety, and energy efficiency, is an ideal choice for achieving high-efficiency and low-cost operations in factories. The product is lightweight, occupies minimal space, and is suitable for industries such as 3C (Computer, Communication, and Consumer Electronics) and automotive.
| Бори ҳадди аксар | 5kg |
| Суръати максималии TCP | 3.6m / s |
| Суръати максималии хати рост | 1.5m / s |
| расида | 917mm |
| Такроран | ± 0.02 мм |
| Синфи IP | IP54 / IP65 |
| -коммуникатсионӣ | Tcp/Ip, Modbus/Tcp, Profinet, Ethernet/Ip |
| Дараҷаи озодӣ | 6 | |
| Якҷоя | Якҷоя | Суръати ҳаракат |
| J6 | ± 360 ° | 225 ° / с |
| J5 | ± 360 ° | 225 ° / с |
| J4 | ± 360 ° | 225 ° / с |
| J3 | ± 360 ° | 225 ° / с |
| J2 | ± 360 ° | 225 ° / с |
| J1 | ± 360 ° | 225 ° / с |
| Интерфейси асбоб | GB/T 14468.1-50-4-M6 (муодили ISO 9409-1) | |
| Вуруд/Хуруҷи пайванди ниҳоӣ | Вуруди/Хуруҷи 2 Dig, 24V, 0.6A | |
| Ҳокимият Таҳвили | 100-240VAC 47-63Hz 10A | |
| Истифодаи барқ | Истеъмоли маъмулии барқ: 200 Вт | |
| насби | Дар ҳама гуна самт насб карда шудааст | |
| Диапазони ҳарорати муҳити атроф | -10 ° C-50 ° C | |
| Диапазони ҳароратҳои нигоҳдорӣ | -40 ° C-55 ° C | |
| Андозаҳои робот | 1100x330x200mm | |
| Андозаи бастаи робот | 698x588x450mm | |
| Вазн / холис | 22kg / 30kg | |
1. Амният
With 16 TU V certified safety functions such as collision detection, force and power monitoring, which enables Human Robot collaboration
2.Smart
Multiple scenario software packages added (welding, palleting, etc.)
A variety of external interface support (DI, DO, AI/ O, etc.)
Support cloud robot data monitoring, remote OTA upgrade
Supports one -click deployment of multiple de vices and remote backup of data
3. Аризаи васеъ
2D/3D visual depth compatibility;
Power control and other ecological support perfect, support
multi-application development
4. Нигоҳдории осон
Easier-to-ues：With Traction Teach Programming，Less limitation to robot user
5.Light and Handy
High-load robots with load to weight ratios up to 1:2.44
Adoption of a new generation of robot control cabinets 50%
reduction in size and 30% reduction in w eight
6.ESD
Power consumption as low as 200W
No need to replace lubricating oil
